3.13 Plate Pressure Eva Rubber Slippers Making Machine by with 2.2KW Main Motor Power

Place of Origin : Shandong, China

Model Number : XLB-D(Y)400*400*2/0.5

Condition : New

Brand Name : HUICAI

Voltage : 220/380V

Dimension(L*W*H) : 400*400*2

Weight : 5000kg

Warranty : One Year

After-sales Service Provided : Engineers available to service machinery overseas

Certification : CE/ISO9001

Power : 2200W

Configuration : Column Frame

Type : XLB-D(Y)400*400*2/0.5

Nominal molding power : 0.5

Working layer number : 2

Piston stroke : 250

Plate Pressure : 3.13

Main motor power : 2.2KW

Plate clearance : 125-200

Calefaction manner : Steam ecectricity

Electric pipe heating power : 2.7

Packaging Details : No packing or packed in wooden cases.

Port : Qingdao

Supply Ability : 100 Set/Sets per Month Rubber Making Machine

Price : $1,475.00 - $3,934.00/sets

MOQ : 1

Contact Now



♥ Qingdao HUICAI Cooperate Sincerely With You ♥



◊Features:



This  machine is of small plate series vulcanizing machine, mainly used for rubber vulcanization, generally USES the pillar ,



compact structure, nice appearance, mould clamping force is big, each station on the template can heat 180 high temperature



(adjustable), lower plate can be temperature control in room temperature condition, form effective temperature difference; This machine with its unique double temperature station structure and high pressure characteristic adapted to all kinds of reflective material products such as trademark, pressing qualitative, etc.



◊Technical Data:



Type

XLB-D(Y)450*450*2/1.00

XLB-D(Y)600*600*2/1.00

XLB-D(Y)500*1000*1/1.00

XLB-D(Y)600*800*1/1.00

XLB-D(Y)750*850*1/1.60

XLB-D(Y)800*800*1/1.60



Nominal molding power(MN)

100

1.00

1.60

Working layer number

2

2/4

2

Piston stroke(mm)

300-500

300-500

300-500

Plate  Pressure (Mpa)

4.94/2.78

2.00/2.08

2.51/2.50

Main motor power(KW)

2.2

2.2

2.2

Plate clearance(mm)

125-250

125-250

125-250

Calefaction manner

Steam ecectricity

Steam ecectricity

Steam ecectricity

Configuration

Column Frame

Column Frame

Column Frame

Electric pipe heating power

2.7/3.6

5.4/4.8

4.8/4.8

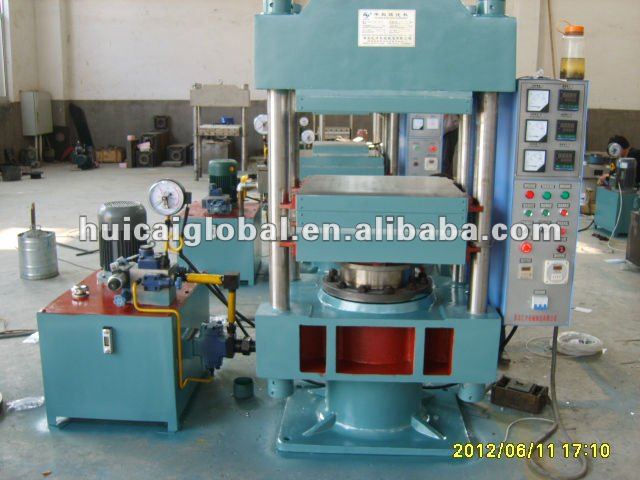

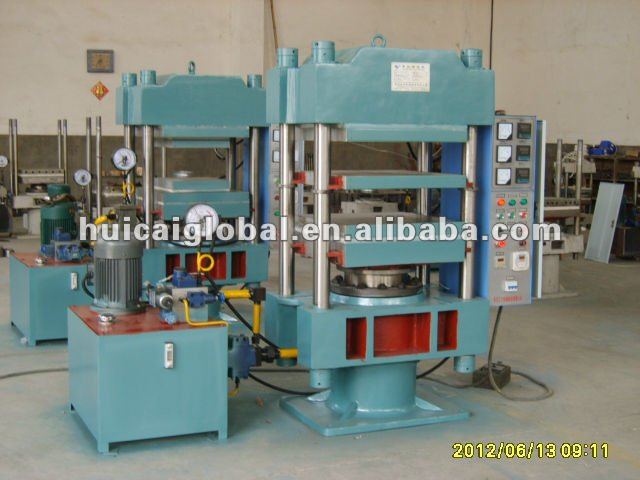

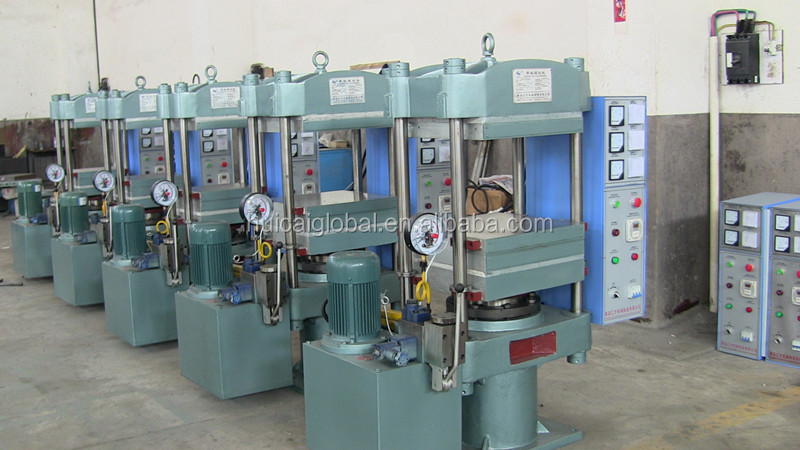

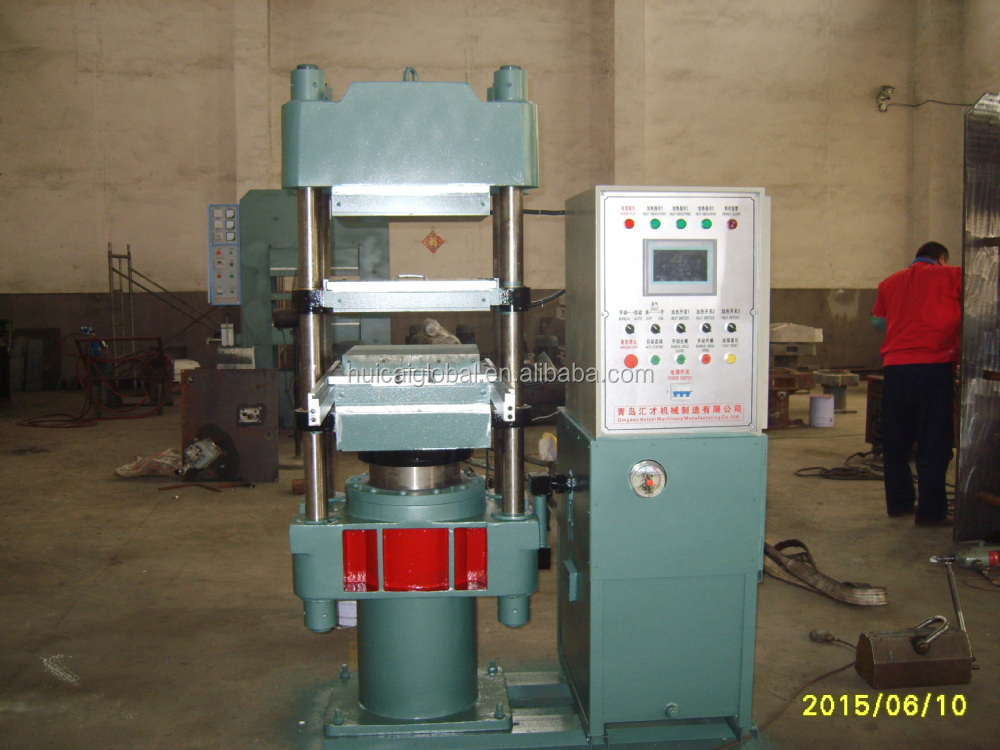

◊Machine Pictures:



3.13 Plate Pressure Eva Rubber Slippers Making Machine by with 2.2KW Main Motor Power



3.13 Plate Pressure Eva Rubber Slippers Making Machine by with 2.2KW Main Motor Power3.13 Plate Pressure Eva Rubber Slippers Making Machine by with 2.2KW Main Motor Power

3.13 Plate Pressure Eva Rubber Slippers Making Machine by with 2.2KW Main Motor Power3.13 Plate Pressure Eva Rubber Slippers Making Machine by with 2.2KW Main Motor Power

◊Main Components:

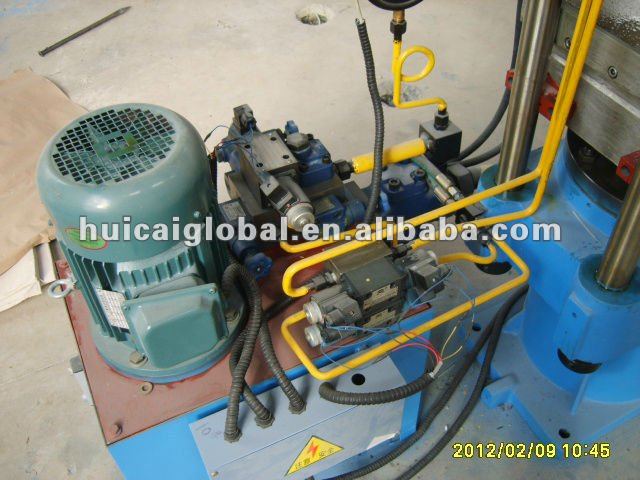

    (1)  Hydraulic Station:

3.13 Plate Pressure Eva Rubber Slippers Making Machine by with 2.2KW Main Motor Power



    (2)  Electric control cabinet:

3.13 Plate Pressure Eva Rubber Slippers Making Machine by with 2.2KW Main Motor Power

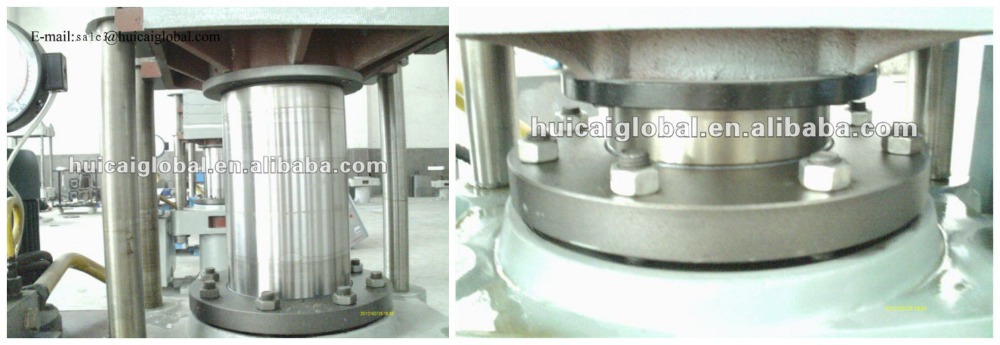

   (3) The Piston:

3.13 Plate Pressure Eva Rubber Slippers Making Machine by with 2.2KW Main Motor Power

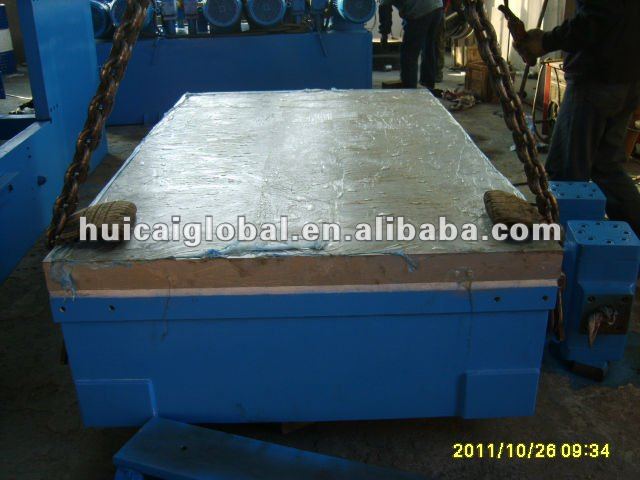

  (4) The Hot Plate:

3.13 Plate Pressure Eva Rubber Slippers Making Machine by with 2.2KW Main Motor Power





◊Company Information:



 (1) Qingdao HUICAI Machinery Manufacturing Co., Ltd. was founded in 1996;
 (2) 100% of the factory, to meet all your requirements;
 (3) CE, ISO9001 certification;
 (4) a one-year warranty and long-term technical support;
 (5) supply of all kinds of rubber machinery: vulcanizing machine, rubber mixer, broken plastic machine, rubber refiner, rubber kneading machine, rubber injection molding machines, vacuum hot press molding machine, hydraulic machine, rubber tableting machine, jaw vulcanizing machine malfunction, pre-curing equipment, hydraulic tire curing machine, automatic tube curing machine, foam machine; conveyor belt production line, sidewall belt production line, molding line conveyor; batch closed cooler (cold); cut plastic machine;
(6) The company has import and export rights, the products are exported to countries and regions in the United States, South Korea, Japan, Thailand, Germany;
(7) 2012 was awarded the "AAA grade credit enterprise" and "integrity enterprises in Qingdao City," the title.

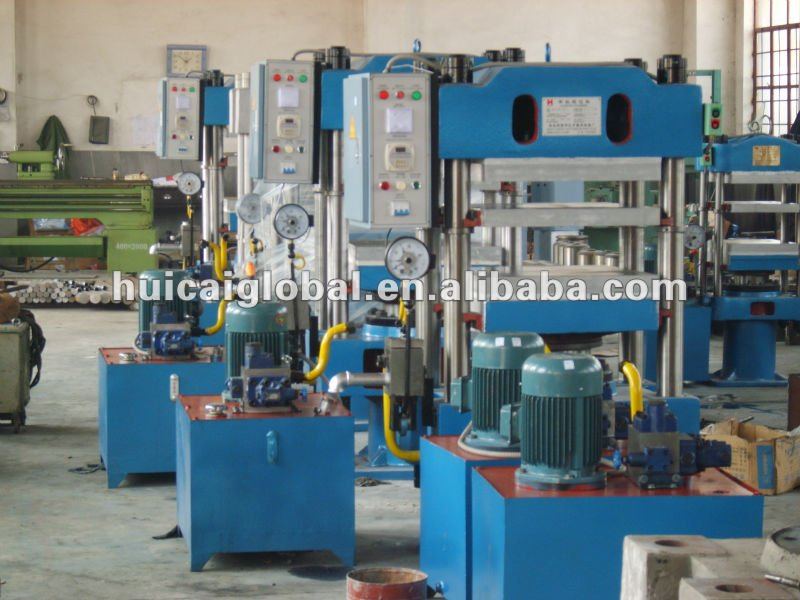

3.13 Plate Pressure Eva Rubber Slippers Making Machine by with 2.2KW Main Motor Power

3.13 Plate Pressure Eva Rubber Slippers Making Machine by with 2.2KW Main Motor Power







Foreigners Visit:



3.13 Plate Pressure Eva Rubber Slippers Making Machine by with 2.2KW Main Motor Power

3.13 Plate Pressure Eva Rubber Slippers Making Machine by with 2.2KW Main Motor Power











                              ♦ Contact us !  ♦





♥  We can according to all your requirements, design your machine you require!

♥  If you are interested in our products, please contact me !
