Rubber Tiles Vulcanizing Press Machine XLB-550*550*4 with PLC and Stable Performance

Place of Origin : Shandong, China

Condition : New

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Warranty of core components : 1 Year

Core Components : Motor

Brand Name : Huicai Brand

Machine Type : Plate Vulcanizing Press

Voltage : 220V/380V

Dimension(L*W*H) : 600*480*600mm

Weight : 220

Warranty : 1 Year

Key Selling Points : Famous brand PLC

Showroom Location : None

Applicable Industries : Manufacturing Plant

Name : rubber machine

Color : Blue Green Red

Packaging Details : Container,export wooden cases packing or according to customers' demand

Supply Ability : 220 Set/Sets per Month rubber machine

Price : $45,000.00/sets >=1 sets

MOQ : 1

Contact Now

Rubber tile making machine



Product Description



Features of Rubber tile making machine



1. Rubber tile making machine is used to make various types of floor tiles with different diamter as you required. With one set Vulcanizing machine, we can make many types tiles only by changing the moulds.

2. This kind machine has three different types, frame type, pillar type and jaw type. It is high efficient with large output, automatic controling, easy operation and safety guaranteed.

3.The working layer can be designed as customer's request, 2, 4, 6, etc

4. We can customize the moulds according to your special requirments.

5. We have got CE, ISO, SGS.

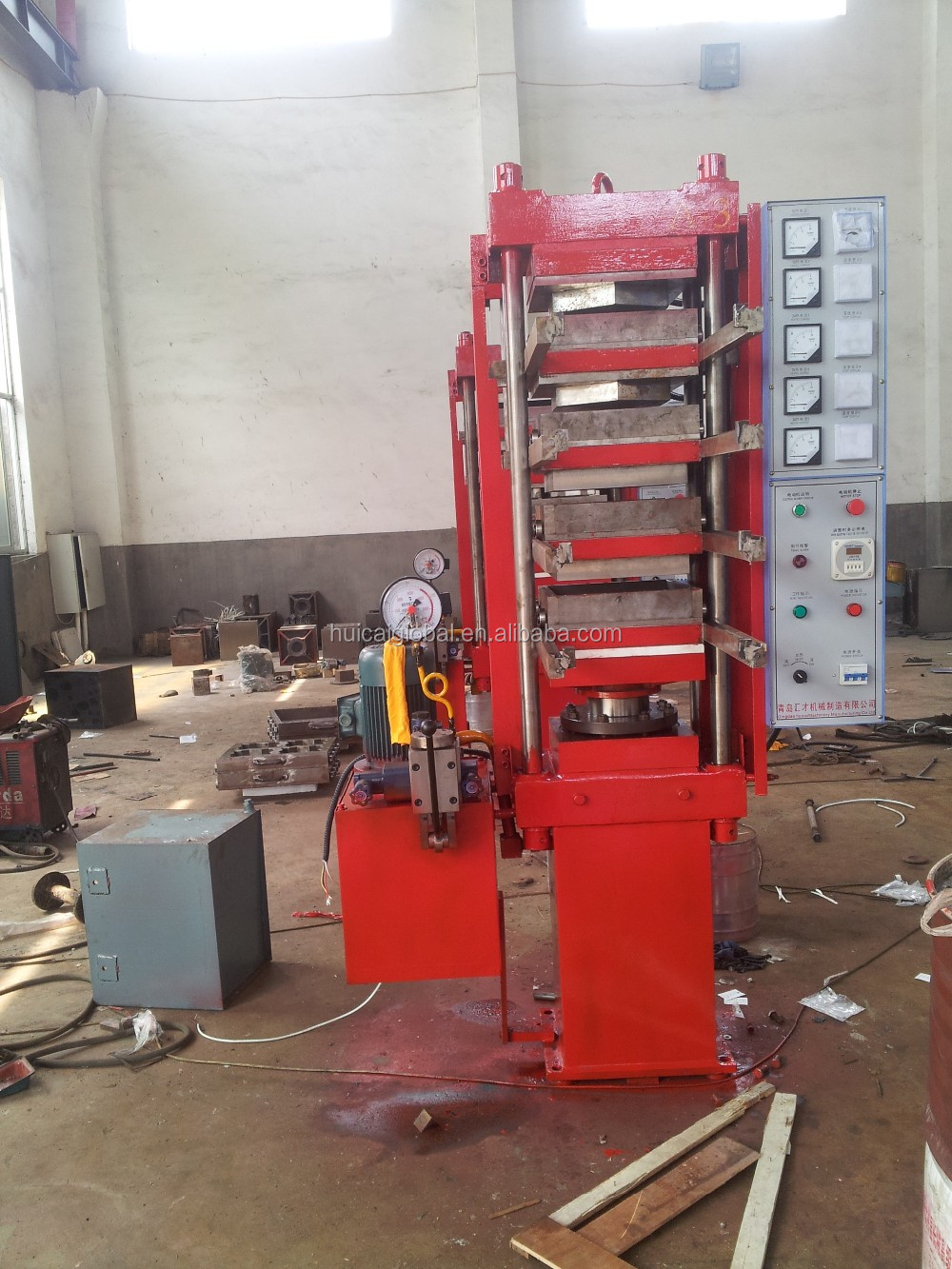

Rubber Tiles Vulcanizing Press Machine XLB-550*550*4 with PLC and Stable Performance





Specification of rubber tile making machine:





XLB-550×550×4/0.50MN:

Clamping Force (MN)

0.50

Size Of Heating Plate (mm)

550*550*40

Distance Between Heating Plates(mm

150

Working Layer No.

4 layer

Unit Area Pressure Of Hot Plate (MPa)

26kg

 Motor power(kw)

3KW

Control Mode

 Automatic

Maximum Working Temperature(°C)

Electricity Mode 200°C

Structure

Four-Column  Type

Up And Down Speed (mm/s)

When Up 15 / When Down 20

Dimension Of The Press (mm)

2200×900×2200

Weight (Kg)

2700

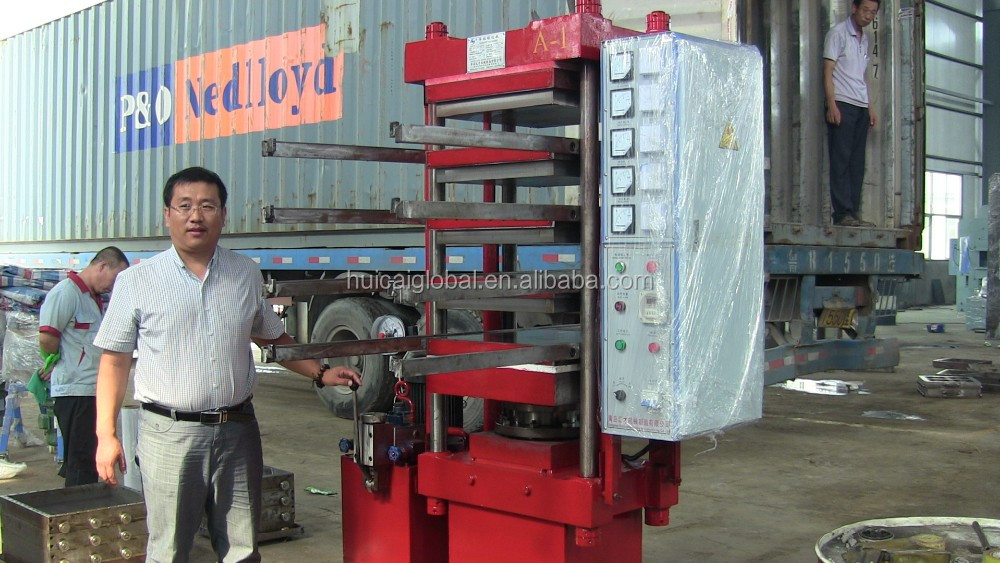

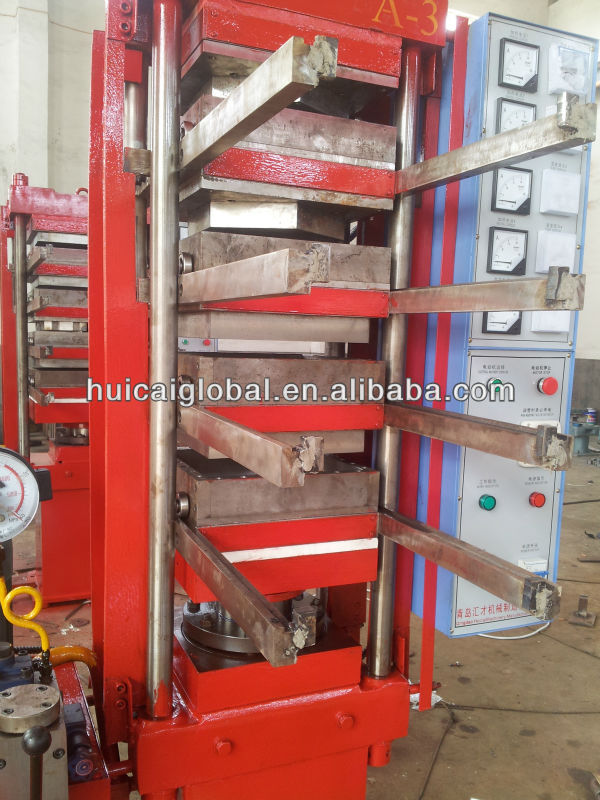

 Rubber Tiles Vulcanizing Press Machine XLB-550*550*4 with PLC and Stable Performance

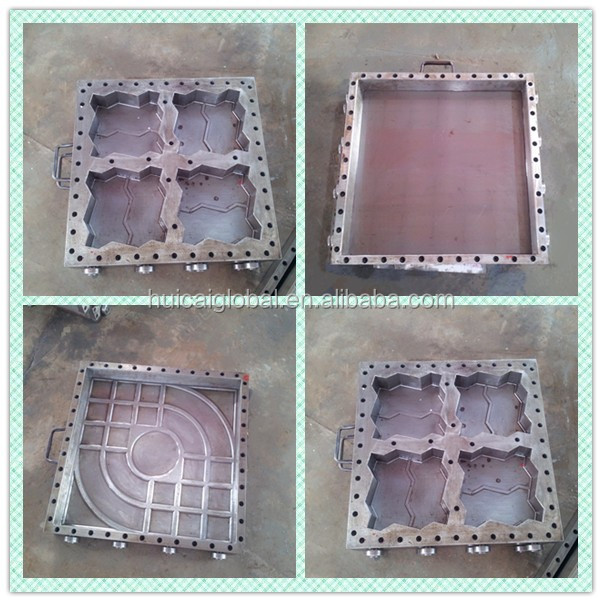

Rubber Tiles Vulcanizing Press Machine XLB-550*550*4 with PLC and Stable PerformanceMolds

Rubber Tiles Vulcanizing Press Machine XLB-550*550*4 with PLC and Stable Performance

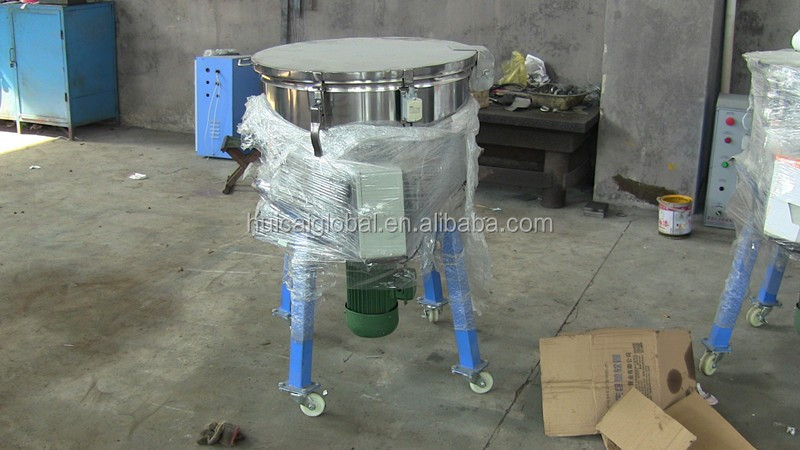

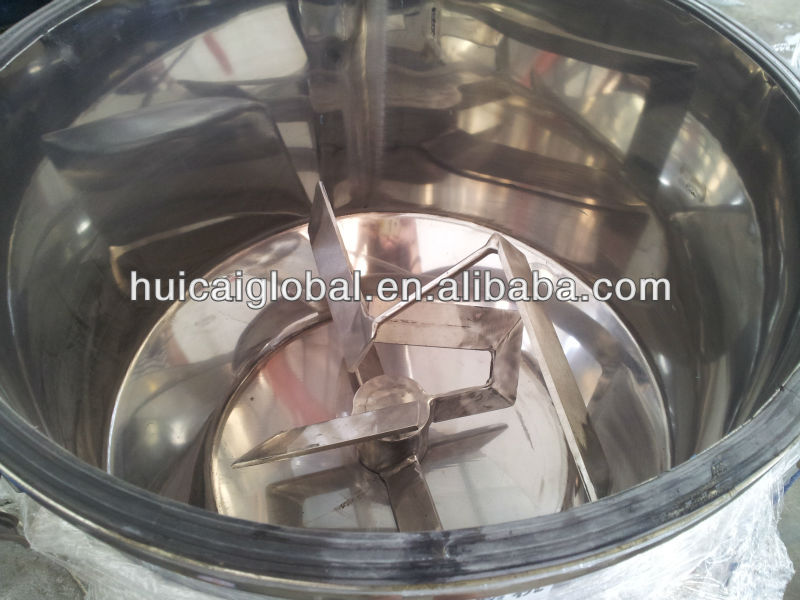

Mixer

Rubber Tiles Vulcanizing Press Machine XLB-550*550*4 with PLC and Stable Performance

Rubber Tiles Vulcanizing Press Machine XLB-550*550*4 with PLC and Stable Performance

Flow chart of rubber tile making machine



Mixing: Pour the rubber granules and coloring pigment into the rubber mixing machine, with some adhesive,  then begin stiring. It will take 4-6 mins to be done.



Weighing: weigh the stirred rubber powder according to the floor tiles thickness you want to make.



Paving and Pressing: pour the needed quantity rubber powder into the mould, and float it by trowel. On the bottom , can be with some coarse and black rubber powder, but on the surface should be with fine and colored powder, it can ensure your tiles quality.



Vulcanization Moulding: Put the mould on the vulcanizer layer, generally , it take 3-8 mins to make the tiles, time difference based on the thickness of the tiles you ready to make. After finished, it will automaticlly separated, then put it somewhere to dry.



Inspecting: Inspect the tiles' surface . If no aberration, no flaw, then it is of high quality products.

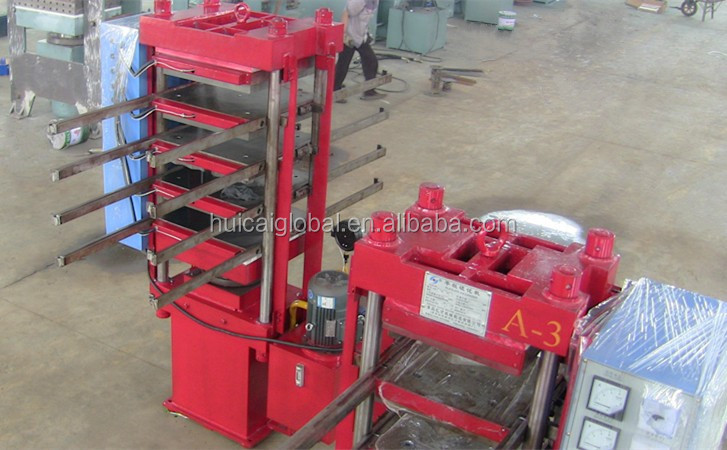

Vulcanizing machine:

Rubber Tiles Vulcanizing Press Machine XLB-550*550*4 with PLC and Stable Performance





Rubber Tiles Vulcanizing Press Machine XLB-550*550*4 with PLC and Stable Performance

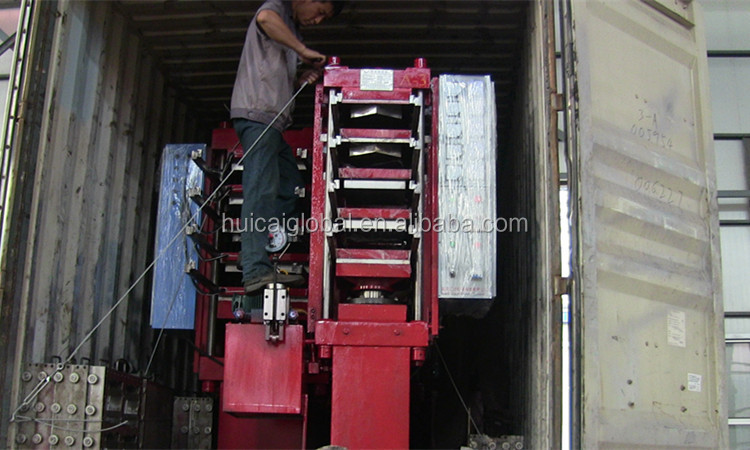

Packaging & Shipping

 Rubber Tiles Vulcanizing Press Machine XLB-550*550*4 with PLC and Stable PerformanceRubber Tiles Vulcanizing Press Machine XLB-550*550*4 with PLC and Stable Performance

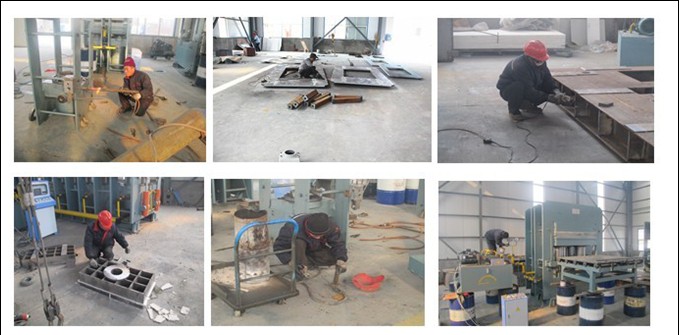

Company Information

 Rubber Tiles Vulcanizing Press Machine XLB-550*550*4 with PLC and Stable PerformanceRubber Tiles Vulcanizing Press Machine XLB-550*550*4 with PLC and Stable Performance



 Rubber Tiles Vulcanizing Press Machine XLB-550*550*4 with PLC and Stable PerformanceRubber Tiles Vulcanizing Press Machine XLB-550*550*4 with PLC and Stable Performance

Our Services



Our Services:

1. Pre-sales Service:

Freely provide project designing, Professional suggestions, Quicky Response!

2. Medium-sales Service:

Accompany you to complete the purchasing, shipping, installing and training

3. After-sales service:

2 year quality guarantee, Life-long Maintenance, Eneineer is avaliable to go overseas install and train your workers.
