CE Certified Rubber Extrusion Machine for Products Cooling Water Pressure 0.2-0.3MPa

Condition : New

Plastic Processed : PE, PVC, Rubber

Application : rudder extruder

Screw Design : Single-screw

Screw Material : 38CrMoAlA High quality nitriding steel

Screw diameter (mm) : 115 mm

Screw L/D Ratio : 4.8:1

Showroom Location : India, Russia, Thailand, Sri Lanka, Ukraine

Place of Origin : Shandong, China

Brand Name : huicai

Voltage : 220/380V

Dimension(L*W*H) : 700x2000x1200mm

Power (kW) : 22

Weight : 1800kg

Warranty : 1 Year

Key Selling Points : High-accuracy

Applicable Industries : Manufacturing Plant, Rubber Product Plant

After-sales Service Provided : Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support, Engineers available to service machinery overseas

After Warranty Service : Video technical support, Online support, Spare parts, Field maintenance and repair service

Local Service Location : United States, India, Russia

Output (kg/h) : 400 - 420

Certification : CE /ISO9001

Screw diameter : 115mm

L/D : 4.8:1

Max. screw rotational speed : 60r/min

Motor power : 22kW

Motor speed : 1000r/min

Steam pressure : 0.3-0.4MPa

Cooling water pressure : 0.2-0.3MPa

Max. production : 420kg/h

Color : Customer Choice

Packaging Details : wood pakcing,fumigation-free wooden cases

Port : qingdao

Supply Ability : 50 Set/Sets per Year Rubber Extruder Machine Manufacturers

Price : $8,800.00/sets 1-1 sets

MOQ : 1

Contact Now

♥ Qingdao HUICAI Cooperate Sincerely With You ♥

♦Application:

The filter Rubber raw material enters the rolling mill to filter away impurities such as scrap iron, stones, etc.to ensure the safety of the roller of the rolling mill. In the process of rolling,the threshing of the screw rod promotes the uniform plasticization of the rubber,and cool perservation by water can be adopted for stablizing the process.

♦Features:

♦Screw made of special steel is with nitrogen treatment,durable.

♦Jacketed type barrel can be cooled for cooling the rubbers effectively.

♦Double head strainer to be quickly and easily exchanged.

♦Smoothly running and high output.

♦Equipped with die-head auto opening system when electric power is cut off.

♦The main technical parameters:

Type	HBXJ-65	HBXJ-85	HBXJ-115	HBXJ-150	HBXJ-200	HBXJ-250
Form of screw&screw thread	Double-head equaldpth convergent type	Double-head equidistant unequaldepth tpype	Double-head convergent type	Double -head unequaldepth convergent type	Double-head convergent type	Double-head convergent type
Screw diameter(mm)	65	85	115	150	200	250
Length-diameter ratio of screw	4	4.3	4.8	4.43	4.35	4.5
Compression ratio		1.3	1.3	1.34
Screw rational speed(r/min)	20/2735/47	28/40/56/80	33/46/60	27-81	22.4-67.2	19.7-59.1
Motor power(KW)	7.5	10/14	22	Frequency control 18.3-55 Moter	Frequency control 25-75 Moter	Frequency control 33.3-100 Moter
Production capacity(kg/h)	50-80	62-270	100-420	700-1200	2200	3500
Stream pressure(Mpa)	0.3-0.4	0.4-0.6	0.4-0.6	0.6-0.8	0.6-0.8	0.6-0.8
Cold water pressure(Mpa)	0.2-0.3	0.2-0.3	0.2-0.3	0.2-0.3	0.2-0.4	0.2-0.4
Compressed air pressure					0.6	0.6
Size(LXWXH)(mm)	1630x604x1050	2050x700x1200	1630x604x1050	3411x814x1470	4564x1800x1750	4950x1150x1483
Weight(kg)	1200	2500	3000	5000	7300	11400

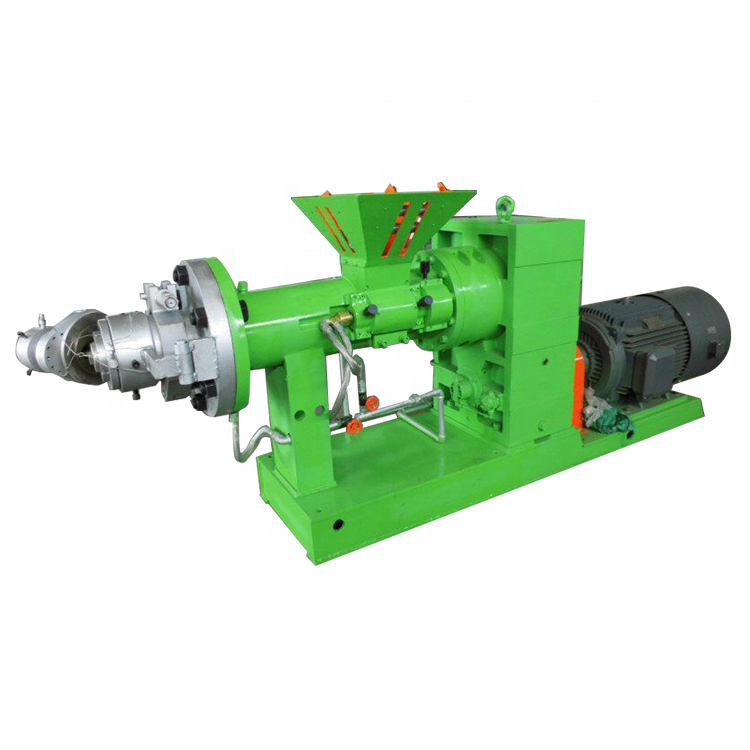

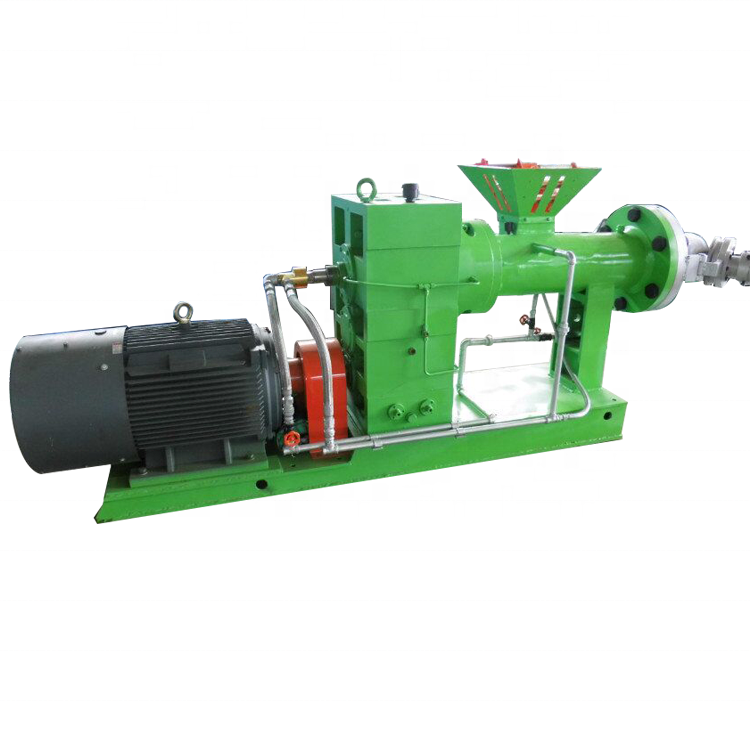

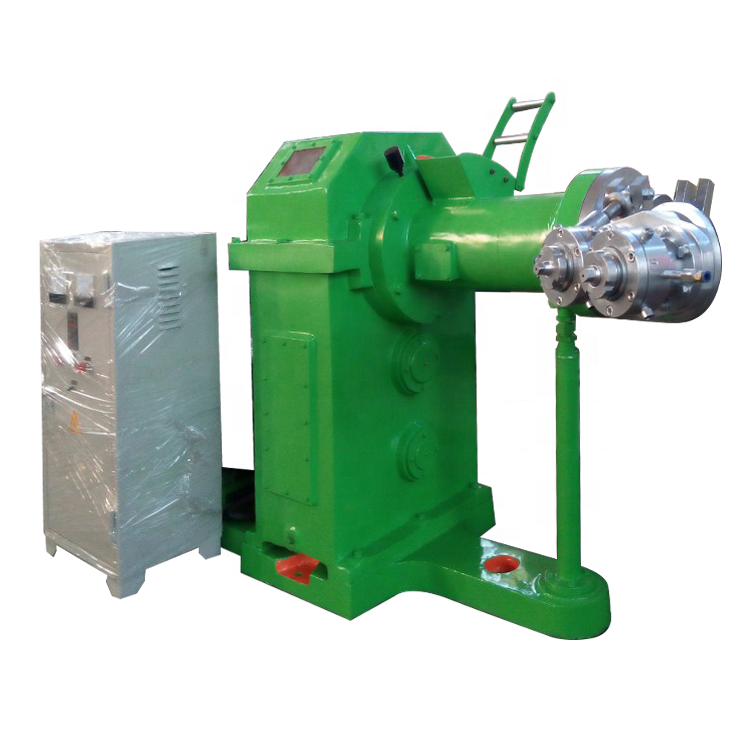

♦Machine Pictures:
